Shanghai Qili Poultry Supplies Co., Limited
9 Years
| Ask Lasest Price | |
| Brand Name : | QL |
| Model Number : | QL194 |
| Certification : | CE, ISO9001 |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000pcs per day |
| Delivery Time : | 15-20days |
| MOQ : | 100pcs |
Product Name: 304 Stainless Steel Pig Nipple Drinkers For Pig drinking poultry pig nipple drinker QL194
Model No.: QL194
Product Description:
G-1/2" thread (European pipe thread) or NPT-1/2"(American pipe thread)is available.
NBR 90 O-ring is permanent and protect leaking
Supply hygenic water for drinking without waste.
Intended for piglets
Individual packing or bulk packing is favorable.
The greatest feature of pig nipple drinker is simple structure. It is composed by shell, mandril and steel ball. When pig wishes to drink, it pushes the mandril and the water goes through the gap of shell, mandril and steel ball. When pig stops pushing, the water pressure and the weight of steel ball and mandril will make them tight coupling, so the water will stop flowing immediately. This kind of pig drinker has strong filtration capacity for sands or other impurities. Nipple drinker must reduce the pressure when it is put into use, in order to avoid the water flow too fast for pig to drink.
Product Specification:
Weight: 57g |
| Product Name | 304 Stainless Steel Pig Nipple Drinkers For Pig drinking poultry pig nipple drinker QL194 |
| Item No | QL194 |
| Material | We usually use stainless steel #201 make nipple drinker. But we also can use other materials like S.S.#304 or 316, according to customer’s request |
| Thread | Usually our products used threads G-1/2”or 3/8” or 3/4”. We also can make threads either BSP or NPT |
| Netting | With stainless steel netting |
| Logo printing | Stamping or laser printing logo is favorable |
| Package | 5pcs/blister card, 200pcs/carton. Also we can do individual packing or bulk packing, according to customer’s request |
| Carton Size | 370x305x135mm |
| CBM per carton | 0.0152m3 |
| Weight per carton | 10-15kg/carton(according to different qty of goods) |
| Loading Qty | 200,000pcs per 20’ Full container |
| Guarantee | 3years |
| Lead time | Usually 15days after receipt of down payment. If we have stock, it will be very soon that we can deliver the goods after we receive payment from customer. |
| Lading Port | Shanghai, Ningbo |
| Payment Terms | L/C or 30% T/T down payment, 70% balance upon receipt of the copy of B/L |
| MOQ | 100pcs |
Install Method of Piglet Nipple Drinker:
The angle of installation is 45º-75º, and the terrain clearance for piglets is 25-30cm, for growing pigs ( 3-6 months’ old ) is 50-60cm, and for adult pigs is 75-85cm.
Applications:
Agricultural Animal Feeding
Competitive Advantage:
Competitive price
Quality approvals
Guarantee and warranty
Small orders are accepted
Best service and prompt delivery
Good products performance
International approvals
Manuafacturer rich experience

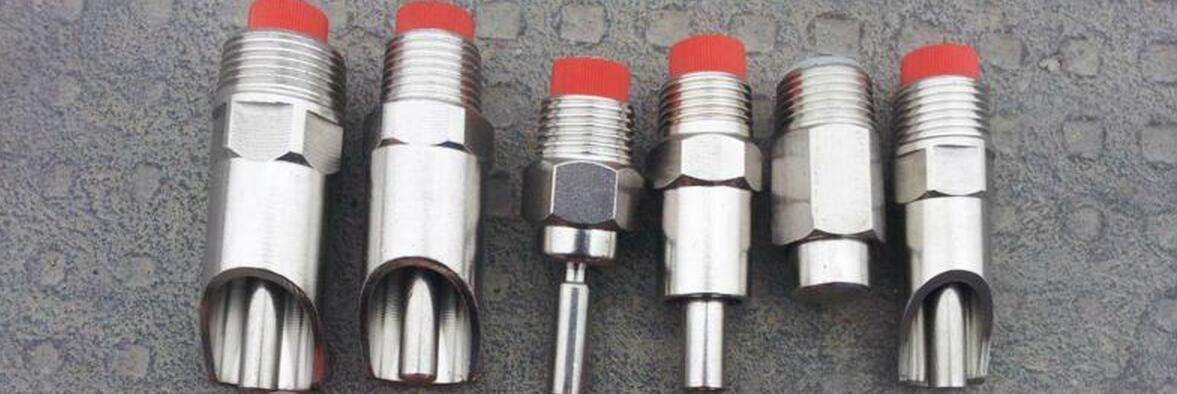

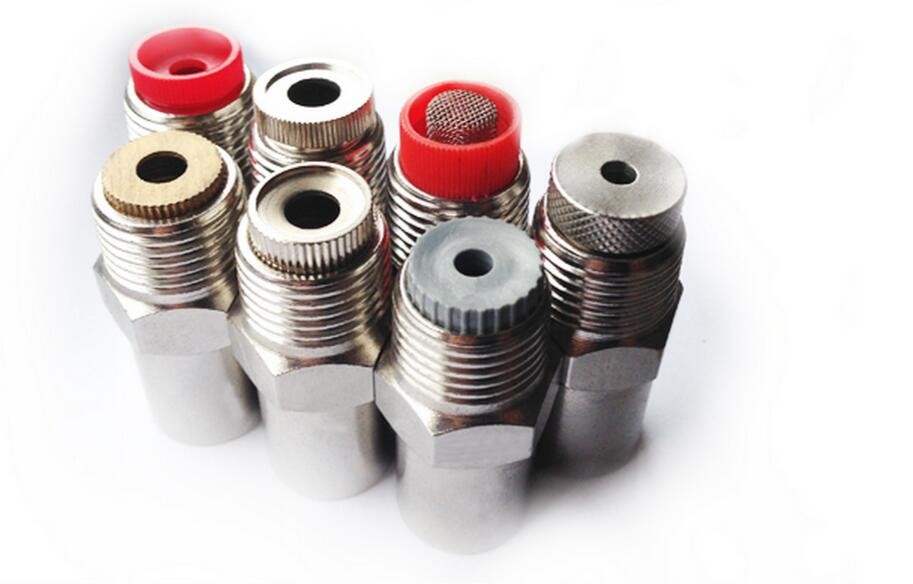

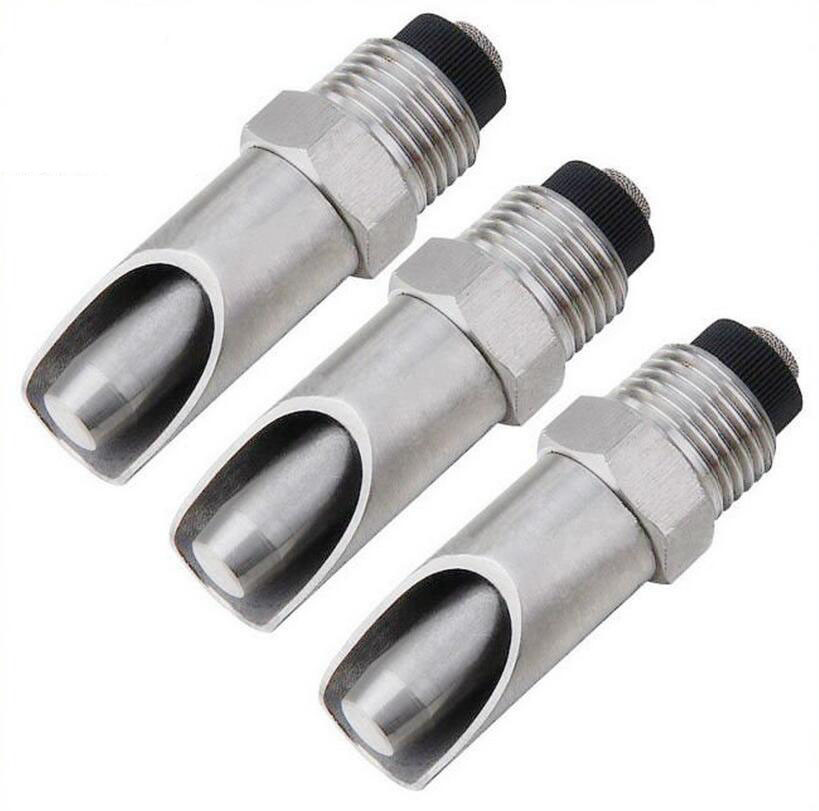

Product Pictures:

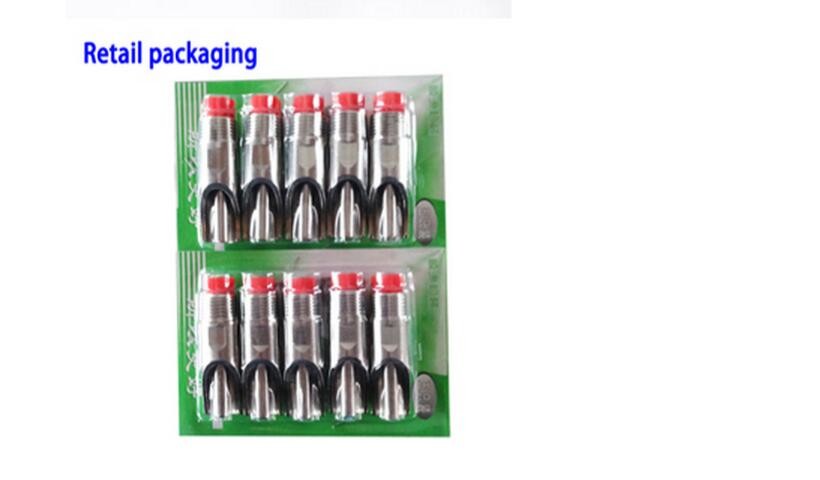

Package:
5pcs/blister card, 200pcs per master carton or bulk packing according to customer's request
Products can be packed specially with card header, printed poly bag, printed master carton. We can print and stick labels with your company logo if printing artwork can be offered. Stamping or laser printing logo is favorable.
Container Loading Photos:
|
|
